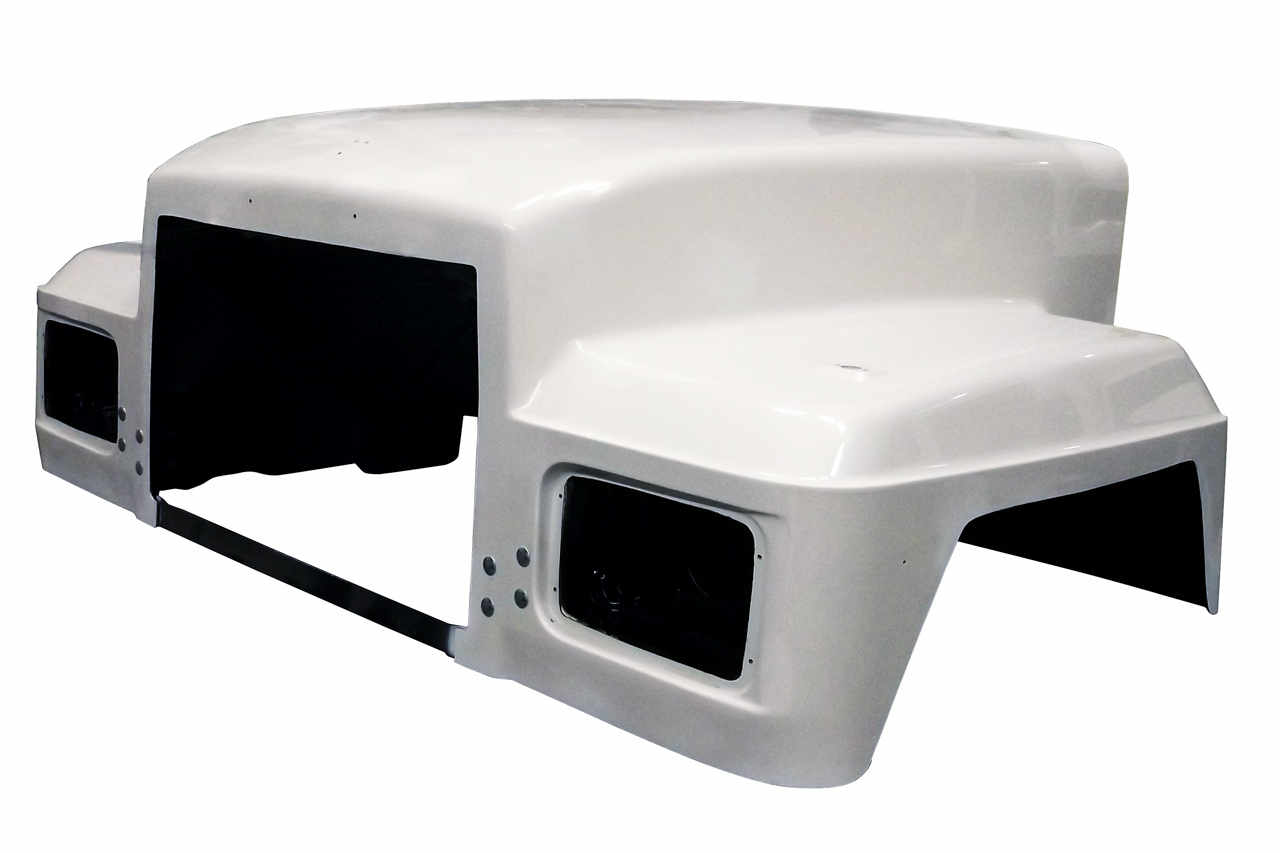

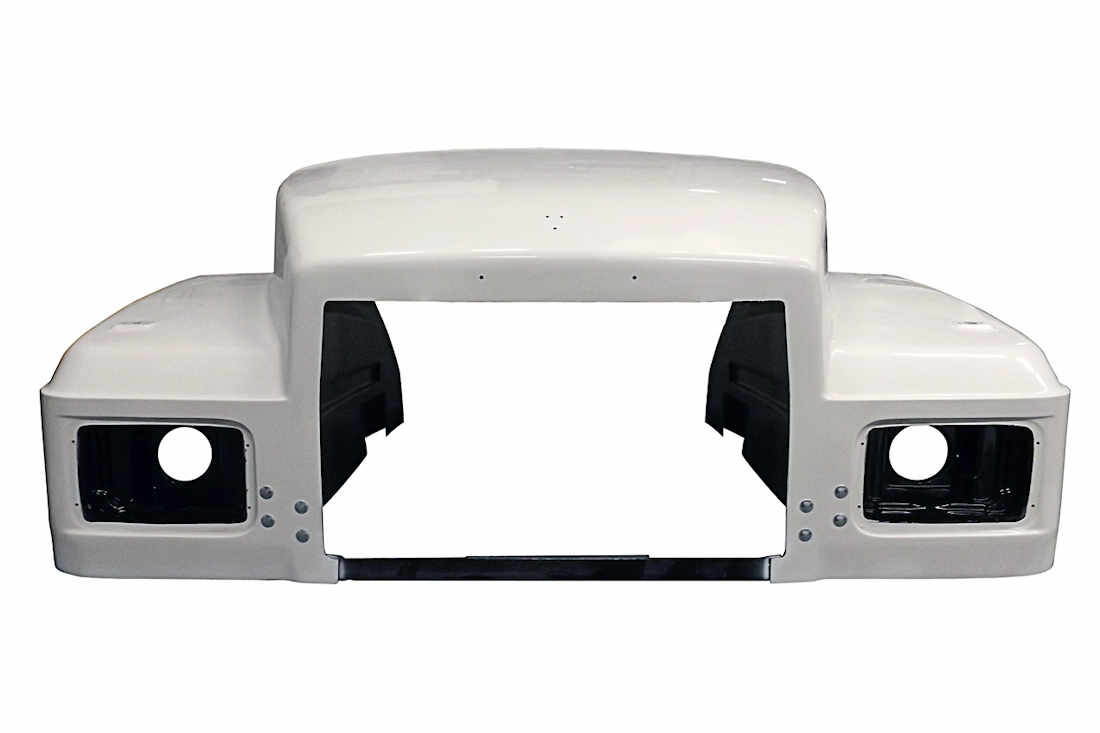

JP-M07S Aftermarket, Fits Mack RD Hood 1990 and newer – SHORT

Description

Fits:

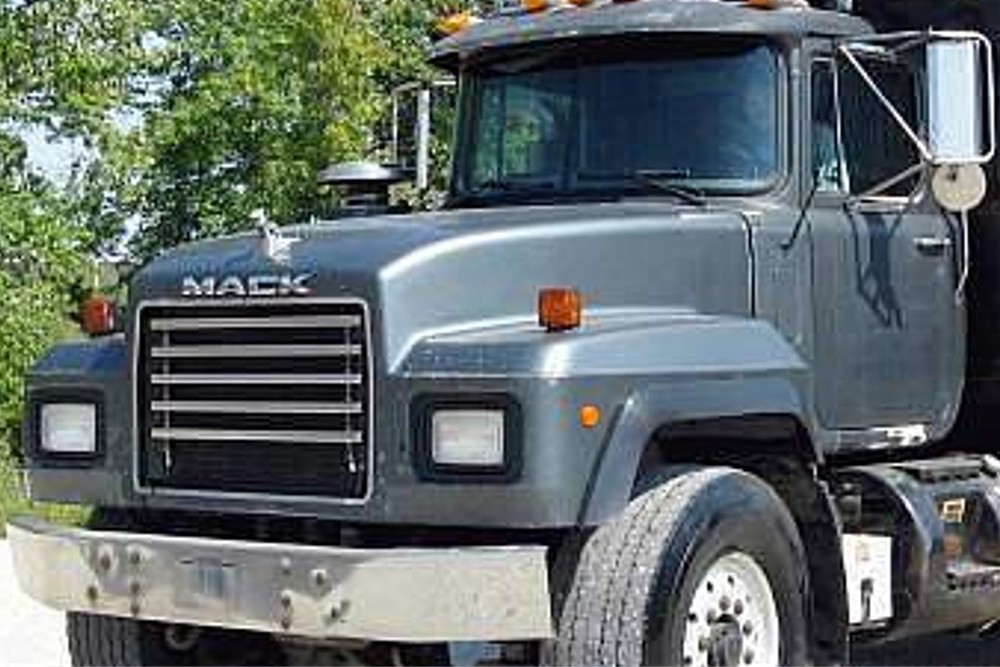

• 1990 and newer Mack RD model trucks
• Center length: 57 inches

OEM Number:

• 25071905, 25094456, 25129684, 25136569, 1QM-5795, 1QM-5796-1B, 1QM-5831, 1QM-5832, 1QM-5832-1, 1QM-5832-P4  See Alerts for More
• JP-M07L (17″) replaces OE# 1QM-5780-1A
• JP-M07M (14 1/2″) replaces OE# 1QM-5795, 1QM-5796-1B, 25071905, 25094456
• JP-M07S (12 7/8″) replaces OE# 1QM-5831, 1QM-5832, 1QM-5832-1, 1QM-5835-P2, 1QM-5832-P4, 25136569, 25129684


Details:

• Aftermarket, fits 1990 and newer Mack RD hood
• Cofab reinforcement used in high stress areas
• Coremat added to suppress starbursts in high stress areas
• E-coated or galvanized steel hardware used to resist corrosion
• White sandable gel coat finish
• Holes pre-drilled for mounting and accessories
• Includes heavy duty cross bar
• Includes headlamp buckets

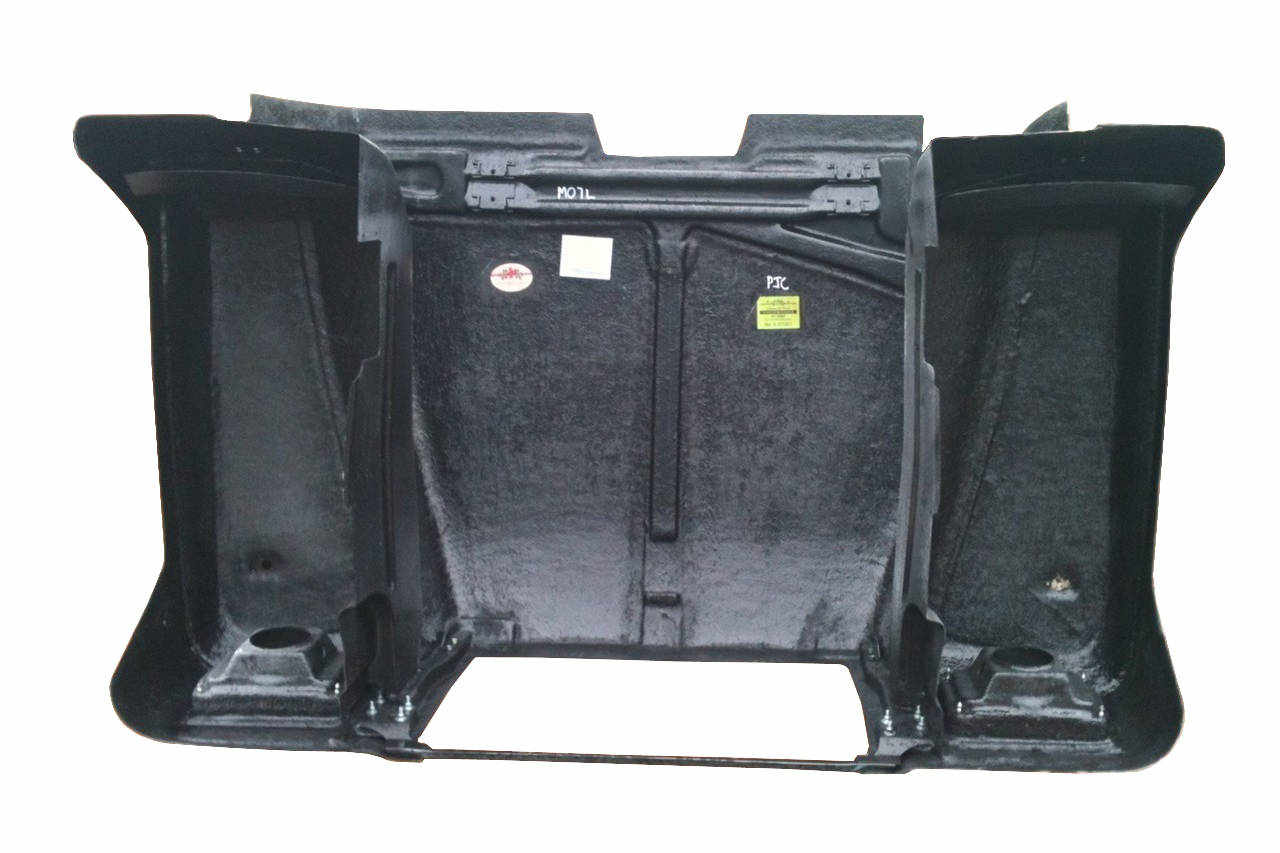

• Includes inner splash shield
• Hap 2001 Certified to fit

Alerts:

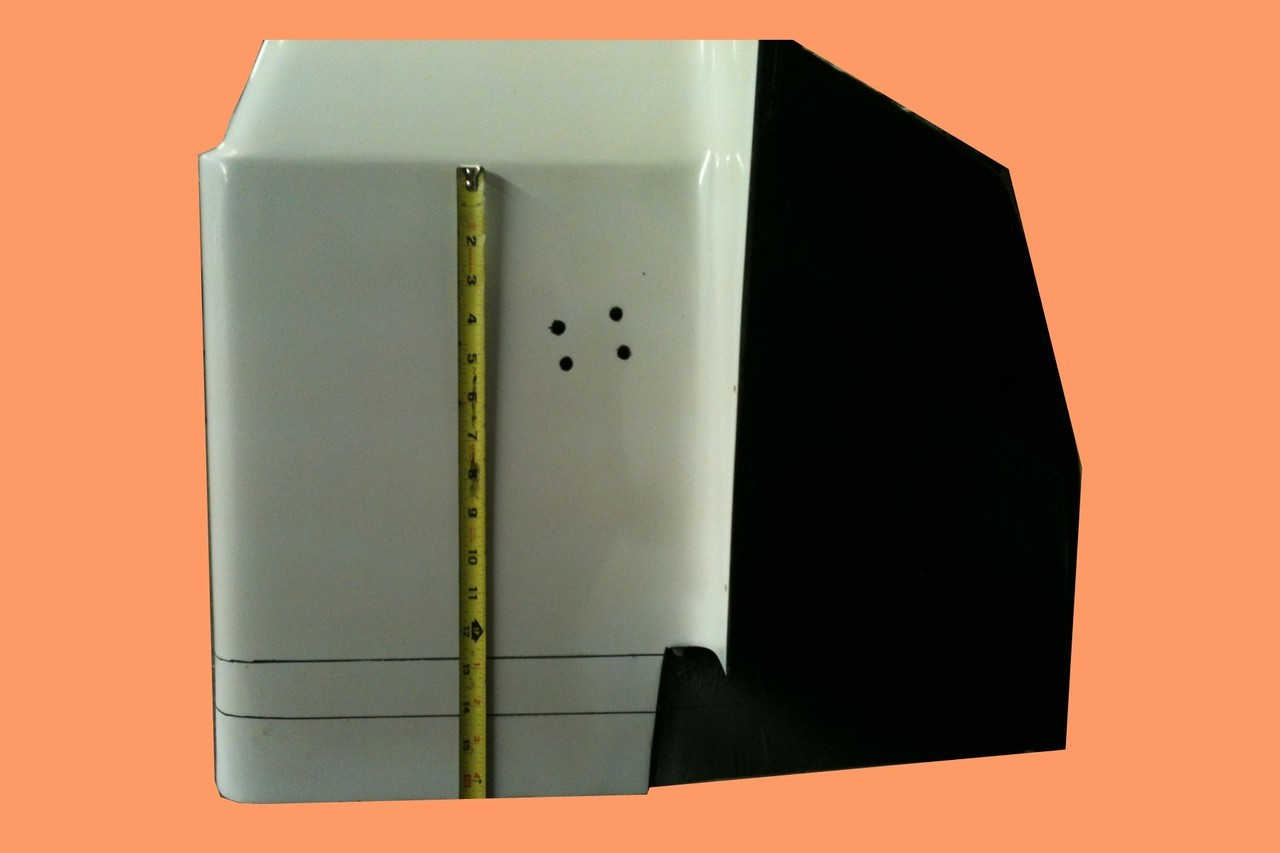

• Dimensions vary, measure fender of old hood, noting clearance between hood & fender extension, cut to fit.
• Uses Bulldog: #14MF410M-rectangle base.
• Will not fit Western Contractor Model. Be sure to measure hood.
• Fenders are pre-drilled for most common skirts. May require re-drilling-Fit before painting hood.
• Western Contractor model available (Part #  JP-M07WC)
• Because of 3 different fender lengths on this RD hood, JP offers 3 different Part numbers.
• Please keep in mind  JP-M07-L has a 17″ rear fender  which can be cut to fit all models.
• Hood can be ordered as long (L) 17″, medium (M) 14 1/2″, or short (S) 12 7/8″ fender length.
• Verify fit on truck before painting
• Sand and prime hood before painting
• Painted parts are non-returnable

• Truck hoods must be shipped to a commercially zoned address – Call for available shipping options.

Instruction Sheet:

Instruction Sheet (click here)

Painting Instructions
